Zero Backlash Worm Gear Solar Slewing Drives, 9 Inches With
Encoders For Solar Energy
Worm Gear Slewing Dive Description

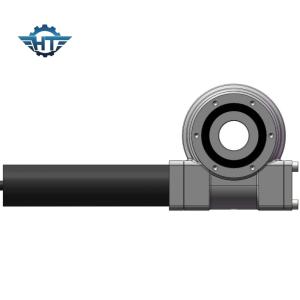

What is a worm gear Slewing Drive?
A worm gear slewing drive (or worm gear slew drive for short) is a
complete, ready to install system that consists of double envelop
worm, gear and completely enclosed housing. It can be customized
with hydraulic or electric planetary gearboxes with IP 66 grade
which is able to be used in outdoor applications. It has the
features of corrosion protection, high load, and high precision.
Worm gear slewing is widely applied in the relatively rotary parts
of machinery and solar energy field such as solar tracking system,
rotary chassis of aerial working machinery, truck crane, rock
drill, drilling machine, grasping wood machine, code molding
machine.
Key Features
1. An unlimited rotating angle and range
2. Provide the most efficient transmission of high power and torque
possible
3. Completely enclosed and sealed housing withstands harsh
environments and increases safety
SE Model Performance Parameters
| SE Model Performance Parameters |
| Model | Rated Output Torque (N.m) | Tilting
Torque
(kN.m) | Holding
Torque
(kN.m) | Axial
Load
(kN) | Radial
Load
(kN) | Ratio | Efficiency | Precision
(degree) | IP | Working Tep
(℃) | Self-locking | Weight
(kg) |
| 1" | 400 | 1 | 2 | 22 | 12 | 32:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 6 |
| 3" | 806 | 1.5 | 3 | 30 | 16 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 8 |
| 5" | 962 | 6 | 9 | 68 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12 |
| 7" | 7344 | 13.5 | 12 | 132 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 21 |
| 9" | 8784 | 45 | 30.8 | 340 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 49 |
| 12" | 11232 | 54 | 45 | 480 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 61 |
| 14" | 11232 | 68 | 54 | 680 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 63 |
| 17" | 11232 | 135 | 65 | 980 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 105 |
| 21" | 18000 | 203 | 81 | 1600 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 149 |
| 25" | 18000 | 271 | 89 | 2400 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 204 |
Advantages
Slewing drives with hourglass worm shafts provide more tooth
contact and higher torque.
Gear and race hardened for extended life.
Product performance is tested and product quality is assured.
Type: SE, ZE
Package
Inner Packaging: anti-rust plastic film ; vacuum plastic bags.
Outer Packaging: hard carton; wooden case ; wood pallet.
